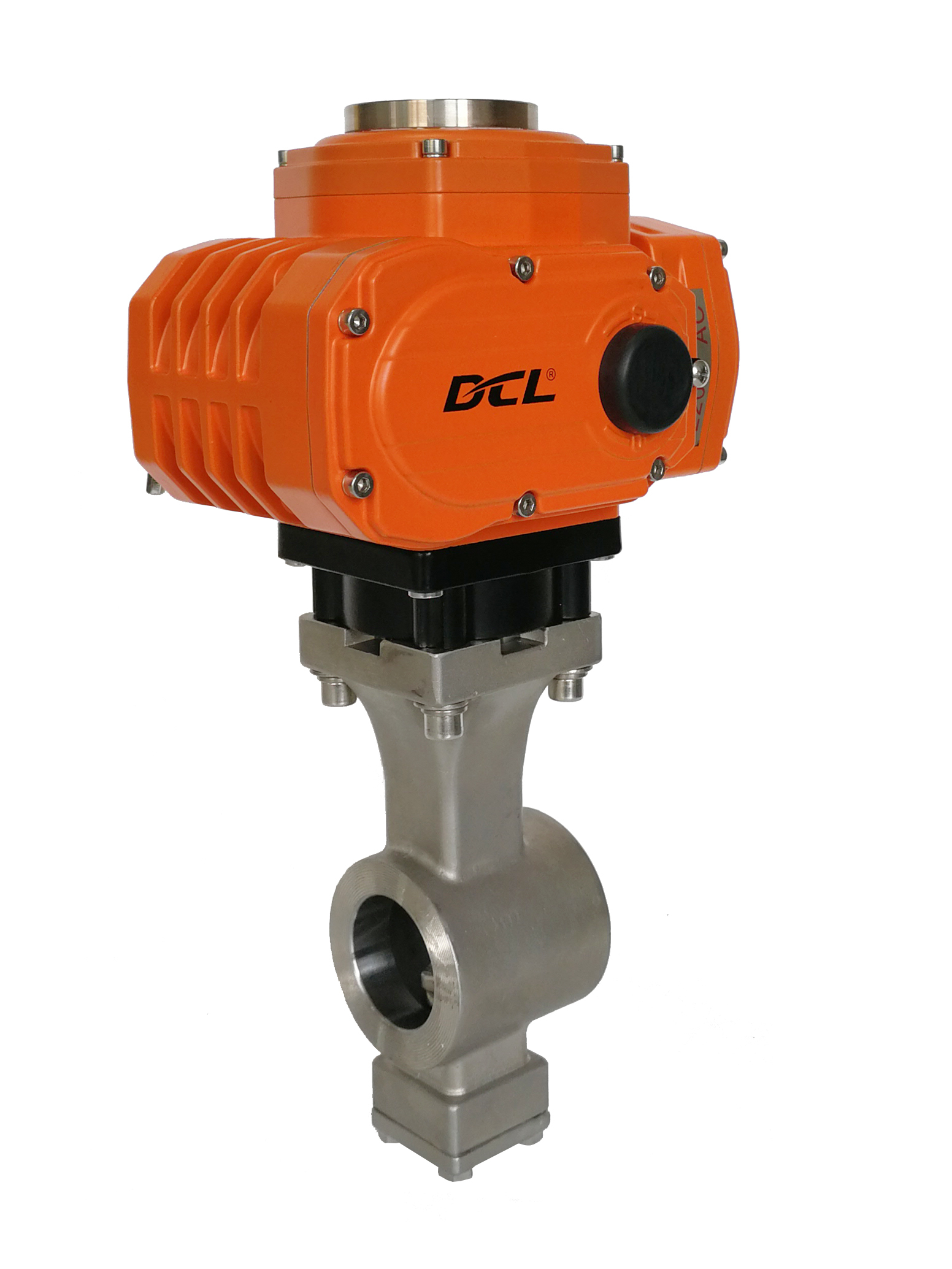

Adjustable Explosion-proof AC DC 200Nm 30S 40W Compact Actuator
無料サンプルとクーポンについては、私に連絡してください。
whatsapp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
ご不明な点がございましたら、24 時間対応のオンライン ヘルプをご利用ください。
x商品の詳細
| 電源 | 24VAC/110VAV/220VAC/380VAC | モーターパワー | 6W〜140W |
|---|---|---|---|
| 標準トルク | 50nmから2500nm/442in.lbsから22125in.lbs | 標準時 | 20秒から75秒 |
| 入力信号 | 4-20MADC/1-5VDC/2-10VDC | 出力信号 | 4-20MADC |
| 保護グレード | IP67 NEMA4/4X | 総重量 | 1.2kg〜20kg |
| 周囲温度 | -25 ℃〜+55℃ / -13°F〜+131°F | 設置角度 | 360° |
製品の説明
Adjustable type electric compact actuator with basic error ≤ 1%
Features
- Quarter turn operation proportional to input signal
- High performance EMC with EFT, ESD and high voltage surge tested for control pack
- Heavy duty motor with thermal overload protection
- Valve position indicator/flat indicator or convex indicator available
- Output 4-20mA signal for valve position
- Standard ISO5211 multi-flange valve mounting
- Full potted multi-function smart control pack resistance to vibration and moisture
- World leading anti-interference ability, control accuracy and sensitivity
- Self-calibrating and problem self-checking function
- Unique integral motor/control pack/ housing design with very small size
- Weather proof aluminum alloy enclosure with thermally bonded polyester coating
- C3 level corrosion resistance with 1000 hours salt spray test
- Manual override with wrench or handwheel
- CSA Certification per UL and CSA standard/CE marked/RoHS 3.0 passed
- Optional functions such as heater,modbus,fail-safe return and so on
Description
The DCL modulating type electric actuator adopts a fully potted resin-encapsulated control pack design. For intrusive electric actuators, a fully potted control pack offers superior reliability and safety compared to an exposed control board. Without potting protection, the electronic components on the board are easily damaged or shorted due to accidental contact during wiring or inspection, leading to a higher failure rate of both the control board and the actuator.
In addition, the resin encapsulation provides excellent protection in harsh environments, such as high humidity or strong vibration during transportation. It also offers effective electromagnetic shielding, enhancing the actuator’s resistance to interference.
Our control pack has passed stringent EMC and reliability tests, including:
-
Surge test: 2500 V
-
EFT (Electrical Fast Transient) test: 4000 V
-
ESD (Electrostatic Discharge) test: 4000 V
-
85/85 endurance test: Continuous operation at 85 °C and 85% relative humidity for over 600 hours with stable performance
The actuator has successfully passed comprehensive EMC tests (EFT, ESD, and surge) and is CSA certified, fully compliant with UL and CSA standards.
Specification
| Type | DCL-05E | DCL-10E | DCL-20E | DCL-40E | DCL-60E | DCL-100E | DCL-200E | DCL-300E |
| Power | AC24/110/220 | AC24/110/220 | AC24/110/220 | AC24/110/220 | AC24/110/220 | AC110/220 | AC110/220 | AC110/220 |
| Output Torque | 50Nm | 100Nm | 200Nm | 400Nm | 600Nm | 1000Nm | 2000Nm | 3000Nm |
| Acting Time | 20S | 30S | 30S | 30S | 45S | 30S | 90S | 110S |
| Turning Angle | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Motor Power | 10W | 25W | 40W | 90W | 90W | 120W | 140W | 140W |
| Rated Current | 1.50/0.24/ 0.16A | 2.12/0.57/ 0.35A | 3.65/0.65/ 0.37A | 6.80/1.12/ 0.57A | 6.80/1.18/ 0.60A | 1.93/0.94A | 1.75/0.96A | 1.75/0.98A |
| Total Weight | 2.5kg | 4.5kg | 9kg | 9.5kg | 10kg | 19kg | 19.5kg | 20kg |
| Input Signal | 4-20mADC,1-5VDC,2-10VDC | |||||||
| Output Singal | 4-20mADC | |||||||
| Basic Error | not more than ±1% | |||||||
| Reciprocating Error | not more than 1% | |||||||
| Dead Space | 0.5%-5.0% adjustable | |||||||
| Damping Characteristic | 0 times | |||||||
| Repeating Error in Actuator | ≤1% | |||||||
| Insulating Resistance | AC24V:100MΩ/250VDC AC110/220V:100MΩ/500VDC | |||||||
| Withstand Voltage Class | AC24V:500VAC 1minute AC110/220V:1500VAC 1minute | |||||||
| Protection Class | IP67 | |||||||
| Installation Angle | 360°at any angle | |||||||
| Electric Interface | Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line | |||||||
| Ambient Temperature | -20℃~+55℃ | |||||||
| Optional Function | Over-torque protector/Dehumidify Heater/Passive contact switch/Dome indicator/Handle | |||||||
| Remark | Any other input or output signal needed, please specified in purchase order. | |||||||
