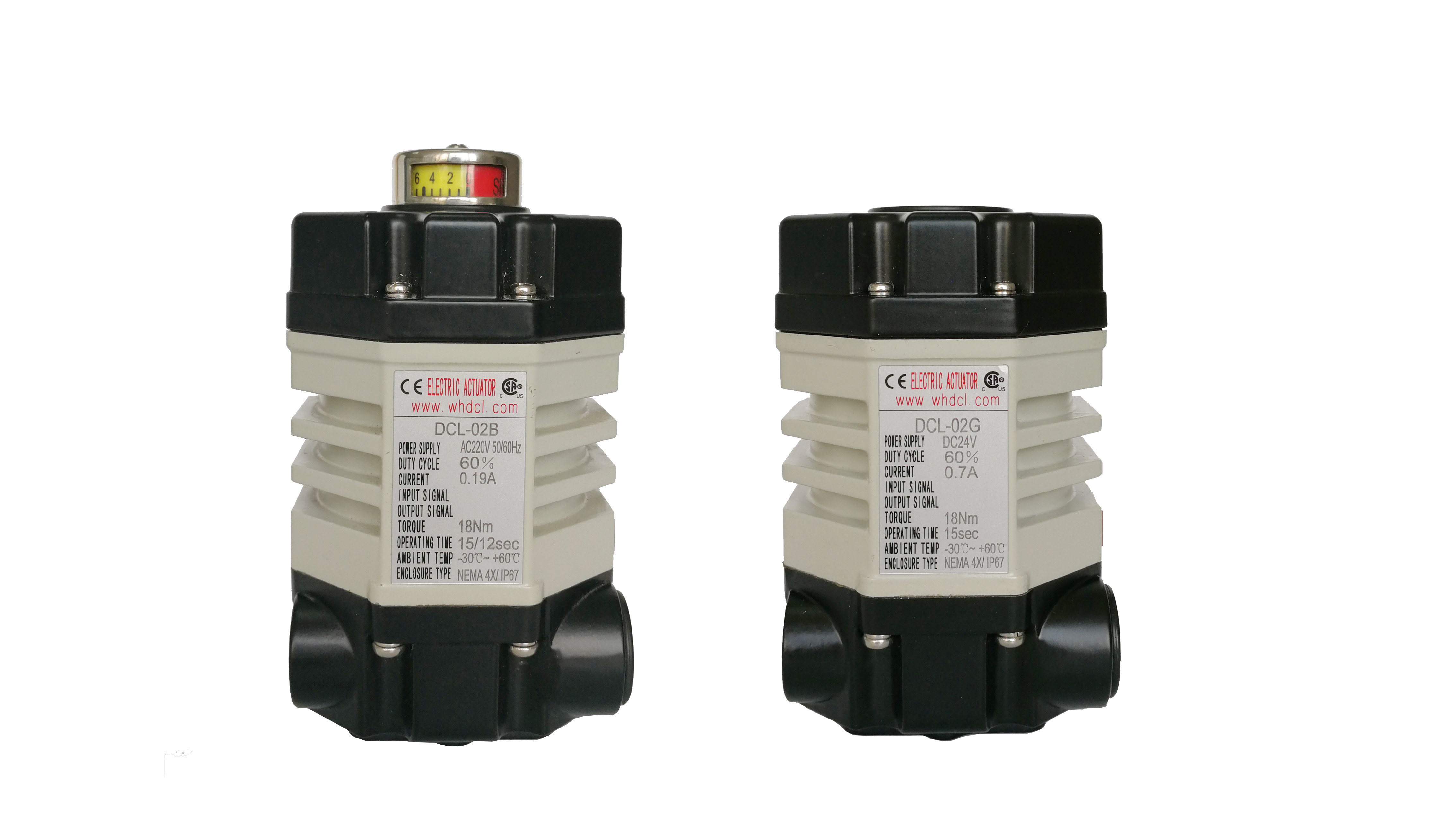

CE CSA UL AC220V Ultra Small Electric Quarter Turn Actuator
商品の詳細
| 標準の時間/トルク | 15s/18nm | オプションの時間/トルク | 7S/9NM 60S/18NM |
|---|---|---|---|
| 最低注文数量 | 1.2KG | 電源 | 24VDC / 12VDC 選択可能 |
| モーター出力 | 8W | 周囲温度 | -25 ℃〜+55℃ / -13°F〜+131°F |
| 設置角度 | 360° | 保護等級 | IP67 NEMA4/4X |
製品の説明
24VDC/12VDC aluminum alloy housing ultra-small electric Quarter Turn Actuator
DCL-02 dimension and parameters.pdf
Features
- Quarter turn standard, turning angle smaller than 360° optional
- Rare earth material permanent magnet brush motor, perfect robustness, very low temperature rise during operation
- Watertight housing cover with IP67 grade for indoor and outdoor use
- Two more limit switches to confirm valve position
- Self-locking when power off
- Strong gear train with soft nitriding metal gears
- Manual operation with handle
- CE marked/RoHS 3 tested/CSA listed
Description
The DCL-02G is purpose-built for high-security industrial environments requiring 12VDC or 24VDC safety power supplies. Its low-voltage architecture inherently eliminates electrical hazards, ensuring uncompromising safety for on-site personnel.
At its core is a rare-earth permanent magnet motor, which generates significantly higher magnetic flux than conventional ferrite alternatives. This allows the actuator to deliver superior torque and high power density within a remarkably compact footprint. Furthermore, the motor is engineered for exceptional load stability. Unlike standard DC motors prone to speed fluctuations, the DCL-02G maintains a consistent operating velocity regardless of load variations. This precision ensures fluid valve control, minimized vibration, and a notably low thermal footprint—delivering reliable, efficient performance in the most demanding applications.
Performance Parameters
| Performance Parameters | |||||
| Type | DCL-02 | DCL-MZZ(Multiple turns) | |||
|---|---|---|---|---|---|
| Power | DC24V | AC24V | AC110V | AC220V | DC24V |
| Motor Power | 8W | 6W | 6W | 6W | 20W |
| Rated Current | 0.7A | 1.3A | 0.3A | 0.15A | 1.1A |
| Standard Time/Torque | 15S/18Nm | 18Nm | |||
| Optional Time/Torque | 7S/9Nm 60S/18Nm | ||||
| Turning Angle or turns | 0～900 | 3r/min | |||
| Available Control Circuit | Type G | Type of A,B | Type of A,B ,E , | ||
| Total Weight | 1.2kg | ||||
| Insulating Resistance | 100MΩ/250VDC | 100MΩ/500VDC | 100MΩ/250VDC | ||
| Withstand Voltage Class | 500VAC 1 minute | 1500VAC 1 minute | 500VAC 1minute | ||
| Protection Class | IP67 | ||||
| Installation Angle | 3600 at any angle | ||||
| Electric Interface | 7-core cable for connection | ||||
| Ambient Temperature | -25～+55℃ | ||||
| Fuse | 2A | 3A | 1A | 1A | 2A |
