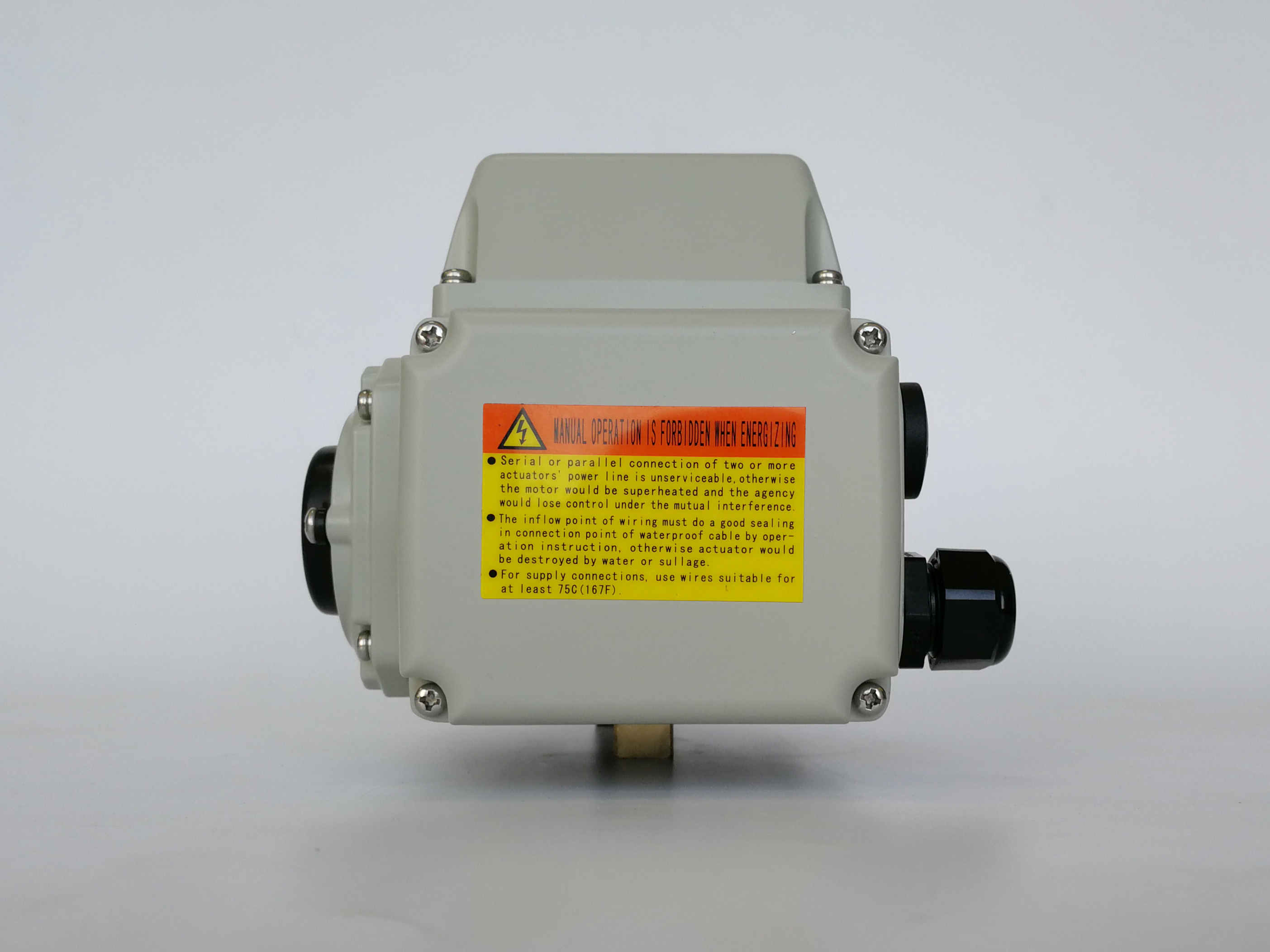

DC24V 30S 100Nm over torque protection Water-proof Electric Actuator
商品の詳細
| 特徴 | IP67 耐水性 | 設置角度 | 360° |
|---|---|---|---|
| 名前 | 1/4回転アクチュエータ | 保護等級 | IP67 NEMA4/4X |
| 電源 | 24VAC/110VAV/220VAC | インストール | 容易な取付けおよび維持 |
| 構造 | アクチュエーター | 色 | カスタマイズされた |
製品の説明
Watertight compact electric quarter turn actuator / over torque protection optional
Performance Parameters
| Performance Parameters | ||||||
|---|---|---|---|---|---|---|
| Type | DCL-10 | |||||
| Power | DC24V | DC12V | AC24V | AC110V | AC380V | AC220V |
| Motor Power | 25W | 25w | 25W | 25W | 15W | 25W |
| Rated Current | 2.03A | 2.60A | 2.12A | 0.57A | 0.10A | 0.35A |
| Standard Time/Torque | 30S/100Nm | |||||
| Optional Time/Torque | 15S/50Nm | 15S/50Nm 60S/100Nm | ||||
| Turning Angle | 0～900 Adjustable,0～360° Adjustable | |||||
| Available Control Circuit | Type of A,B,C,D,E,F,G,H, | |||||
| Total Weight | 4.5kg | |||||
| Insulating Resistance | 100MΩ/250VDC | 100MΩ/500VDC | ||||
| Withstand Voltage Class | 500VAC 1minute | 1500VAC 1minute | 1800VAC 1minute | |||
| Protection Class | IP67 | |||||
| Installation Angle | 3600 at any angle | |||||
| Electric Interface | Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line | |||||
| Ambient Temperature | -25～+55℃ | |||||
| Optional Function | Over-torque Protector/Heater/Dome indicator/Handle | |||||
Description
DCL common-series electric actuators are typically used to operate quarter-turn butterfly valves, ball valves, dampers, and swing arms. When a continuous power signal is received, the motor rotates in one direction and drives the output through an all-metal gearbox equipped with a final-stage worm gear, completing a 90° rotation. The motor automatically stops when the internal cams engage the limit switches. When a reverse continuous signal is applied, the motor runs in the opposite direction, driving the output back to its original position.
An over-torque protector is available as an option when precise torque control is required. A PTC electronic heating element is also integrated as a thermostatically controlled anti-condensation heater, protecting the actuator from moisture-related damage.
Features Summary
| Feature: | Rugged IP67 Watertight |
|---|---|
| Installation Angle: | 360° |
| Total Weight: | 4.5KG To 20KG |
| Ambient Temperature: | -25℃~+55℃ / -13°F~+131°F |
| Power Supply: | 24VAC/110VAV/220VAC |
| Structure: | Actuator |
| Standard Time/Torque: | 30S To 75S/100Nm To 2500Nm/885in.lbs To 22125in.lbs |
| Name: | Quarter Turn Actuator |
| Motor Power: | 15W To 140W |
| Protection Grade: | IP67 NEMA4/4X |
| Installation: | Easy Installation And Maintenance |
| Color: | Customized |
Features
- Quarter turn operation with mechanical limits
- Rugged IP67 watertight, robust die cast aluminum enclosure/100% test under water
- Two auxiliary limit switches to confirm valve position
- Visual valve position indicator/flat or convex
- Manual override/handwheel optional
- Thermal overload protection heavy duty motor with PTC overheating protector
- Self-locking all metal gear drive, no additional brake required
- Over torque protector is optional for actuators torque larger than 100Nm
- CSA Listed per UL429 and CSA C22.2, CE mark, comply RoHS 3
Application
- University LABS, automotive laboratories.
- diesel fuel saving, etc.
- Small equipment such as water saving, automatic control system and industrial automatic control in colleges and universities.
- Agricultural irrigation, environmental protection, water supply and drainage, water treatment works.
- Water-saving appliances, drinking water equipment, etc.
